Why don’t you just buy a powerlet USB adapter to plug your charge cord into? Numerous options exist; and no wiring involved at all.



I don't want external wiring dangling about....On all my bikes I run the phone power with the handlebar wires and when I park overnight at a hotel I have a cap for the cable to keep dry. I snap on my phone to my quad-lock mount and my cord is right there to plug in....clean install.

Craig



Enjoy your project!



I use a PDM-60 for this purpose. My INNOVV dash cam is also plugged into it. If you get the Quad Lock wireless charge you will not have to worry about the powe rcords getting wet.



PDM-60

Where did you get switched power from?

Craig



Not knowing what year your bike is I'm not sure if it has a powerlet outlet like the 2011-2016 bikes have but they have one under the seat near the battery on the right side. You have to dig around a bit to find it. The adapter listed below could be plugged into it and then the usb cord could be run under the tank panels and up the back side of your handlebars. Or you could tap into the wires of that powerlet outlet and do the same thing.

Amazon.com: Powerlet (PAC-072-06) Powerlet Straight Plug to SAE 6" Battery Charging Cable : Automotive

Amazon.com: YONHAN Motorcycle Phone Charger 4.8A, SAE to USB Adapter with Voltmeter & ON/Off Switch, Dual USB Quick Charge 3.0 USB Charger Waterproof Motorcycle Accessories for Phone, Tablet, GPS, etc : Automotive

Buy YONHAN Motorcycle Phone Charger 4.8A, SAE to USB Adapter with Voltmeter & ON/Off Switch, Dual USB Quick Charge 3.0 USB Charger Waterproof Motorcycle Accessories for Phone, Tablet, GPS, etc: Battery Chargers - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

I have a similar set up although I get my power through a Fuzeblocks power distribution panel.



Jim, Mines a 2016 GTL.....I didnt know there is a powerlet under the seat...I'll look for it.

Craig



Just use one of these and control it from the powerlet hot wire. It's cheap and you'll have no worries about the circuit staying on and draining your battery. There's no need to buy expensive CANBUS stuff for this type of simple install.

It's good for 25 amps and is what I use for my accessories including supplying power to my heated gear.



I thought of using a relay of sme kind but I felt the load that it created would keep the powelet circuit energized after shut down. Not being an electronics person, how does this device not do it.



So I found the rear under-seat Powerlet. I unplugged it from the back of the connector and temporarily pushed in my 12V to usb adapter and it charged the phone great. Bad news as mentioned, it keeps the voltage on (with bike shut off) since the CANbus see's a load so this wont work for me.

What about the 12Vdc in the barrel connector going to the tourpac? Will that work the same as the powerlet or will it shut off even with a load? Tail light?

Craig



Use these items and wire straight to your battery. It won't be switched power but so what. The LED isn't enough to worry about plus I have my bike plugged into a battery tender while parked at home. If that is a concern you can get those USB ports with no LED in them.

Amazon.com: YONHAN Motorcycle Phone Charger 4.8A, SAE to USB Adapter with Voltmeter & ON/Off Switch, Dual USB Quick Charge 3.0 USB Charger Waterproof Motorcycle Accessories for Phone, Tablet, GPS, etc : Automotive

Buy YONHAN Motorcycle Phone Charger 4.8A, SAE to USB Adapter with Voltmeter & ON/Off Switch, Dual USB Quick Charge 3.0 USB Charger Waterproof Motorcycle Accessories for Phone, Tablet, GPS, etc: Battery Chargers - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

Amazon.com: Motorcycle Solar SAE Quick Disconnect Extension Cable Adapter, Ring Terminal Harness with Black Fused 2-Pin Quick Disconnect Plug to Solar Panel, Power Supply, Motorcycle/Motorbike/Car (2pcs) : Automotive

Buy Motorcycle Solar SAE Quick Disconnect Extension Cable Adapter, Ring Terminal Harness with Black Fused 2-Pin Quick Disconnect Plug to Solar Panel, Power Supply, Motorcycle/Motorbike/Car (2pcs): Terminals & Ends - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

Amazon.com: Battery Tender Quick Disconnect USB Charger Adaptor - Charge Mobile Devices with 12V Vehicle Battery on The Go - 081-0158 : Automotive

Buy Battery Tender Quick Disconnect USB Charger Adaptor - Charge Mobile Devices with 12V Vehicle Battery on The Go - 081-0158: Battery Chargers - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



I looked at various options and in the end felt the best thing for me was to use a usb charger that connected to a fuse block (PDM 60) and mounted on the handlebar.



Sorry, just noticed Arizona Jim sent a pic of the same set up.



Thanks coyote, that will help me with a project.



I used this

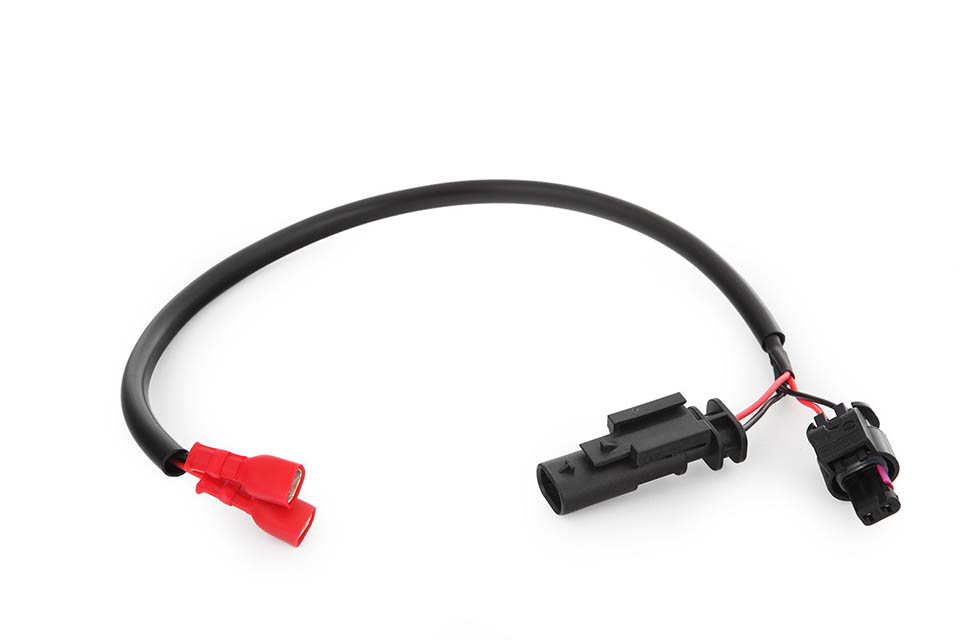

Wunderlich Quick Connect for Navigation

Check out the deal on Wunderlich Quick Connect for Navigation at wunderlichamerica.com

www.wunderlichamerica.com

it plugs into the DIN connector on the right hand side front panel and gives you a y-connetor into the wire harness.



PS: look at the instructions in the Wunderlich page to get all the details on what it looks like.



I believe this is accurate but am open to correction...my powerlet stays "hot" after shutdown, but not indefinitely; it times out. I want to say at about a minute (unless there is a load as discussed). I didn't know if you were testing power there within that time period, seeing power, but not testing after the time has expired, and assumed the power was on indefinitely. Just a suggestion.



I have this Wunderlich connector on my GT, powering a GPS. It works as described, the power stays on for about a minute then shuts down. It works. If the GPS battery is 100% loaded, there is no load on the circuit at shut down and the canbus shuts it down immediately. If the GPS battery is 99% charged and still needs a little bit, the canbus sees the load and will leave it on for about a minute.

For all intent and purposes, it works like old style switched circuit, it shuts off when the bike shuts off. It’s just a little confusing that it doesn’t happen immediately. Maybe that’s the Germans playing with us🙂
